| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Cutting Direction (HAND) | Neutral |

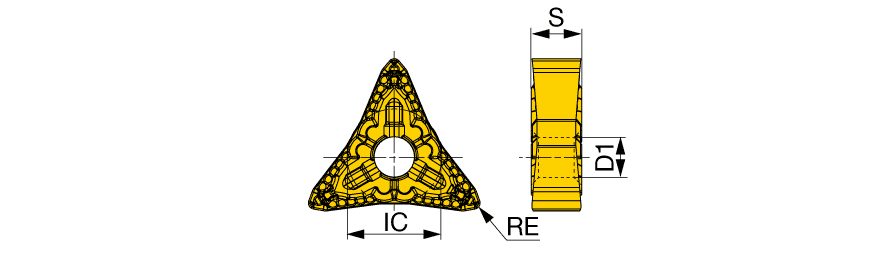

| Corner Radius (RE) | 1.2 mm | Chip Breaker Type | AMT6C-TM |
| Insert Thickness (S) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Ti-compound+Al2O3+TiN | Cutting Edge Effective Length (LE) | 7.9 mm |
| Grade | T9215 | Unit | M |
| Fixing Hole Diameter (D1) | 5.16 mm |
Product Features

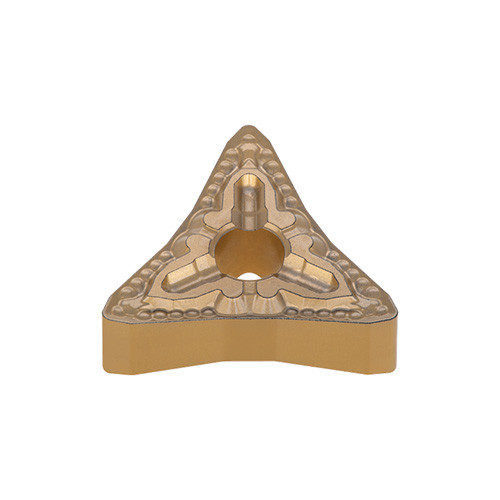

| Family Description | Negative relief ang., M class, 80 deg corner angle insert for AddMultiTurn ,for medium cutting | FamilyName | 6C-TOMG-TM |
| Remarks | Please note, when machining with pull face turning method, that 6C TOMG2506... insert may interfere with the workpiece whose external diameter is 30 mm or smaller. *Products are made by license; PrimeTurning is a proprietary technology of AB Sandvik Coromant. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
6C-TOMG-TM
BrandName
Tungaloy
