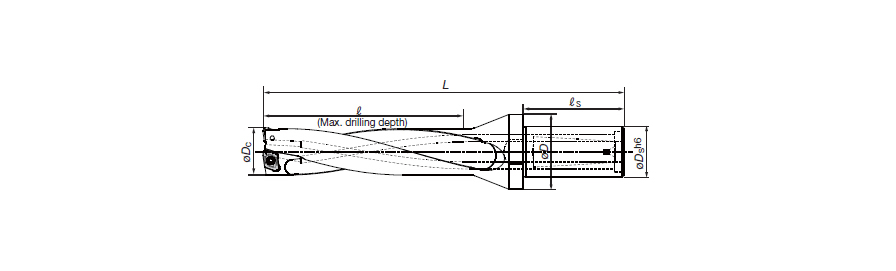

| Cutting Diameter (DC) | 1.687″ | Cutting Diameter Maximum (DCX) | 1.687″ |
| Usable Length (LU) | 6.748″ | Flange Diameter (DF) | 2.165″ |
| Application | | General Drilling | | Point Length (PL) | 0.061″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | XPMT |
| Shank Length (LS) | 2.688″ | Body Material | Steel |
| Functional Length (LF) | 8.7″ | Decimal Equivalent | 1.687″ |
| Overall Length (OAL) | 11.449″ | Unit | I |
| Cutting Diameter Minimum (DCN) | 1.687″ |
Product Features

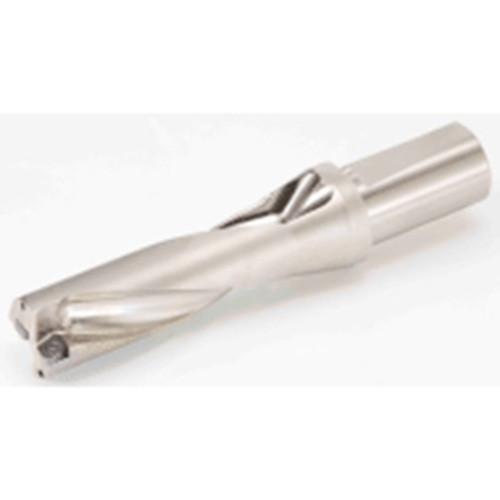

| Family Description | TungDrillTwisted Indexable insert drills, L/D=4, Whistle notch | COO | JAPAN |
Shipping Info
Weight per item
4.4974
