TLA10R063L054M25.4-04

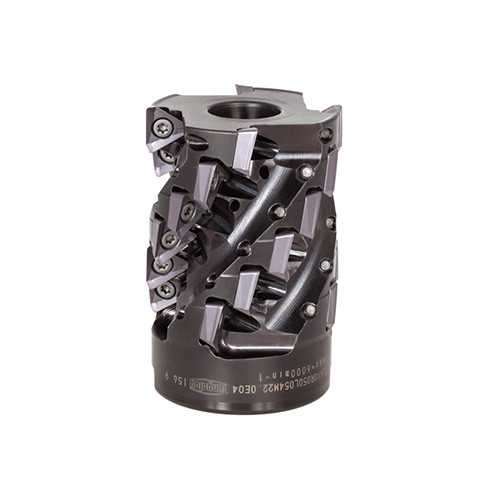

Extended Flute square shoulder mills for roughing with TOMT10 triangular inserts

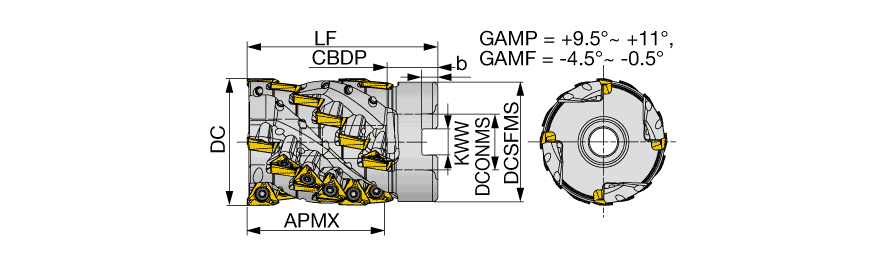

| Application | | Shoulder Milling | | Master Insert Identification (MIID) | TO*T10... |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 24 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 54 mm | Body Material | Steel |
| Cutting Diameter (DC) | 63 mm | Tool Type | 90 Extended flute shell mill |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Unit | M |
| Overall Length (OAL) | 80 mm |
Product Features
| Family Description | Extended Flute square shoulder mills for roughing with TOMT10 triangular inserts | FamilyName | TLA10 |
| Remarks | Coolant can be supplied from the end face of the centering location bore in the arbor. However, cannot be supplied from the center bolt. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.5100
Name
Shell Mills
FamilyName
TLA10
BrandName
Tungaloy
