ACLNR2525M12-A

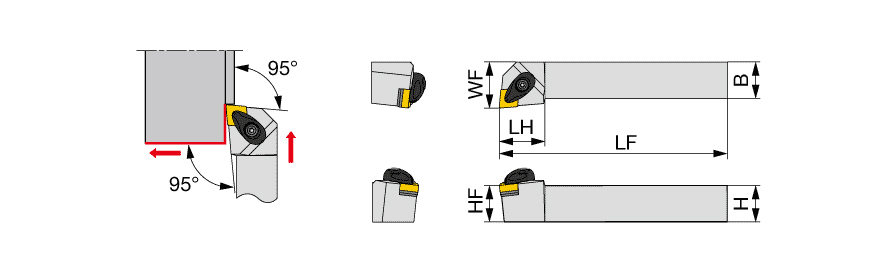

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | CN**/GNMG1204... |
| Shank Width (B) | 25 mm | Application | | For 80deg Rhombic insert | |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Functional Length (LF) | 150 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 30 mm | Measurement Type | Metric |
| Functional Width (WF) | 32 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features

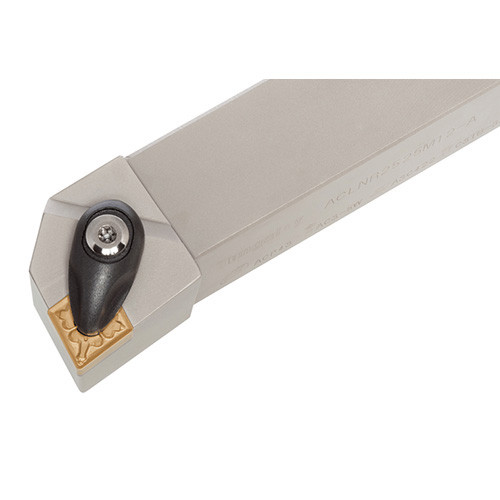

| Family Description | Double-clamp toolholder with 95deg approach angle, for negative 80deg rhombic inserts | FamilyName | ACLNR/L-TUN6852879 -M |
| Remarks | Torque:Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.722
Name
General Indexable Turning Tools
FamilyName
ACLNR/L-TUN6852879 -M
BrandName
Tungaloy
