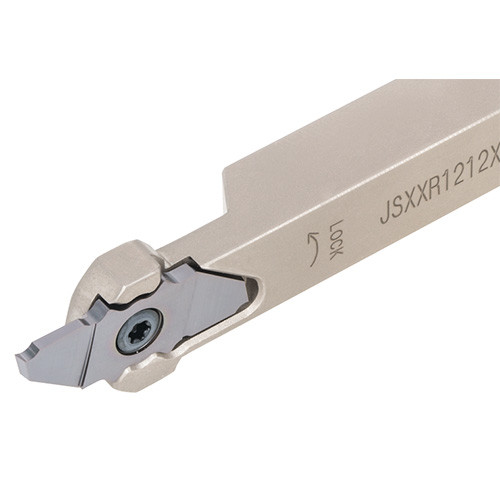

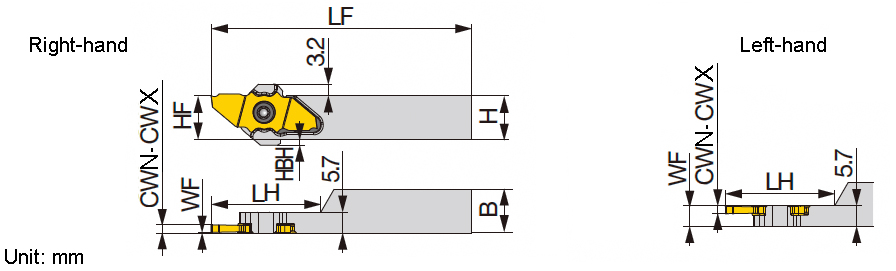

JSXXR1010X09-S
| Cutting Width Minimum (CWN) | 0.6 mm | Head Length (LH) | 26 mm |
| Cutting Width Maximum (CWX) | 2.5 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 8.5 mm | Application | | Ext Threading | External grooving | For Miniature machining | Parting off | |
| Shank Height (H) | 10 mm | Body Material | Steel |
| Shank Width (B) | 10 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 0.2 mm | Measurement Type | Metric |
| Functional Length (LF) | 120 mm | Unit | M |
Product Features
| Family Description | Parting off tools for sub spindol in swiss lathes | FamilyName | JSXXR/L-S-TUN6734819 -M |
| Remarks | When JX**12... insert is used, "LF" and "LH" are shorter 2 mm. When JX**06... insert is used, "LF" and "LH" are shorter 4 mm. When JX**20... insert is used, "LF" and "LH" are longer 2 mm. The right hand insert (JX****R...) is used for the right hand toolholders (JSXXR...), and the left hand insert (JX****L...) is used for the left hand toolholders (JSXXL...). Torque: Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.262
Name
Groove/Turn Indexable Holders
FamilyName
JSXXR/L-S-TUN6734819 -M
BrandName
Tungaloy
