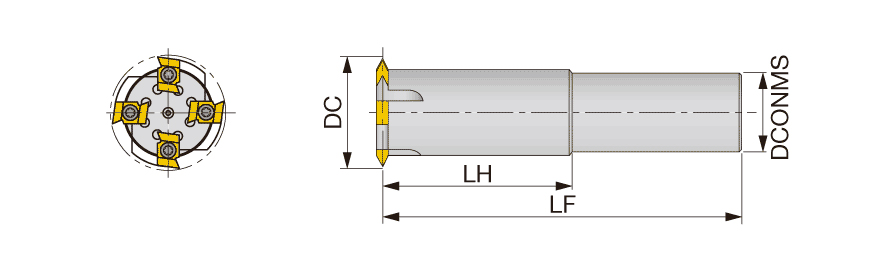

| Cutting Diameter (DC) | 23 mm | Tool Type | Indexable thread mills |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Overall Length (OAL) | 115 mm | Cutting Item Count (CICT) | 1 |
| Master Insert Identification (MIID) | T1-R14 | Head Length (LH) | 45 mm |
| Body Material | Steel | Thread Size | M28 - M30 |
| Application | | Ext. Thread Milling | Int. Thread Milling | | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features

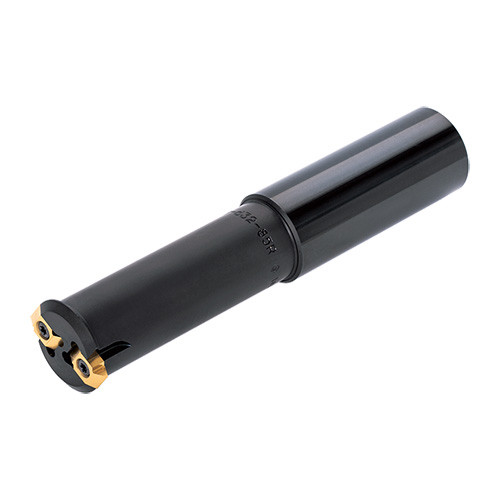

| Family Description | Single tooth threading mills | COO | JAPAN |
| Remarks | Climb milling is recommended. When threading a blind hole, use the right hand cutter in right hand rotation. Cut up from the bottom to prevent chip recutting. When machining internal threads from the mouth, use the left hand cutter in left hand rotation. |
Shipping Info
Weight per item
0.3980
