| Application | | Inserts for miniature | | Measurement Type | Metric |

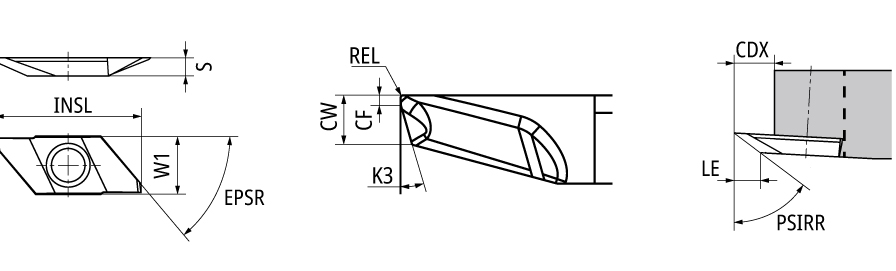

| Insert Thickness (S) | 2.5 mm | Insert Width (W1) | 8 mm |
| Insert Included Angle (EPSR) | 50 Degrees | Body Material | Carbide |
| Cutting Edge Material | Carbide | Cutting Depth Maximum (CDX) | 5.3 mm |
| Coating | CrAlN | Cutting Edge Effective Length (LE) | 3.5 mm |
| Grade | ST4 | Unit | M |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | TBP-BM Mold chipbreaker |
Shipping Info
Weight per item
0.0037
Name
Turning Indexable Inserts
FamilyName
TBP-BM Mold chipbreaker
BrandName
NTK Cutting Tools
