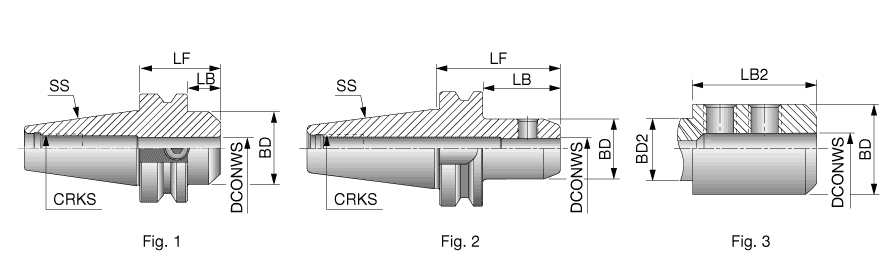

| Shank Type | Weldon | Connection Retention Knob Thread Size (CRKS) | M16 |
| Connection Diameter Workpiece Side (DCONWS) | 14 mm | Shank Size (SS) | 40. |
| Body Diameter (BD) | 44 mm | Tool Type | BT |
| Overall Length (OAL) | 45 mm | Body Length (LB) | 18 mm |
| Application | | Tapered shape interface | | Body Material | Steel |
| Measurement Type | Metric | Unit | M |
Product Features
| Family Description | Screw locking endmill holders with BT shank | FamilyName | BT-EM (endmill holder) |
| Remarks | Applicable for 10 MPa coolant | BrandName | Tungaloy |
| COO | TURKEY |
Shipping Info
Weight per item
0.0000
Name
End Mill Holders
FamilyName
BT-EM (endmill holder)
BrandName
Tungaloy
