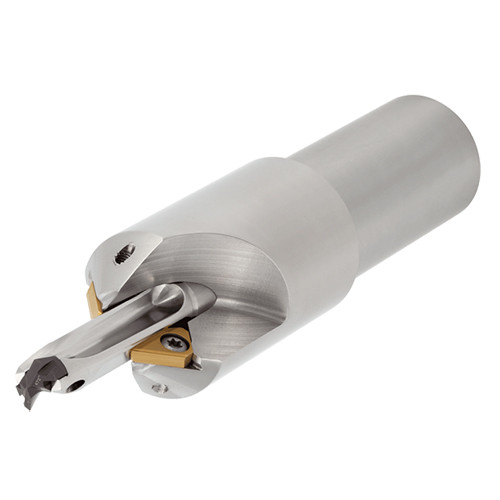

| Application | | Chamfering | | Shank Length (LS) | 50 mm |
| Tool Type | Chamfering drills | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Measurement Type | Metric |
| Insert Seat Size Code (SSC) | XC0603 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 8.5 mm | Flange Diameter (DF) | 25 mm |
| Cutting Diameter Maximum (DCX) | 9.4 mm | Unit | M |
Product Features
| Family Description | DrillMeister TIDCF Chamfering adopters, Whistle notch | COO | ISRAEL |
| Remarks | Note: For L, click on "More Info". It is recommended to apply external coolant on the chamfering inserts. Reduce the recommended feed and speed of the drill being used by 50% when machining maximum chamfer size. Chamfering angle (PNA) depends on the chamfering insert being used. |
Shipping Info
Weight per item
0.0000
Related Documentation

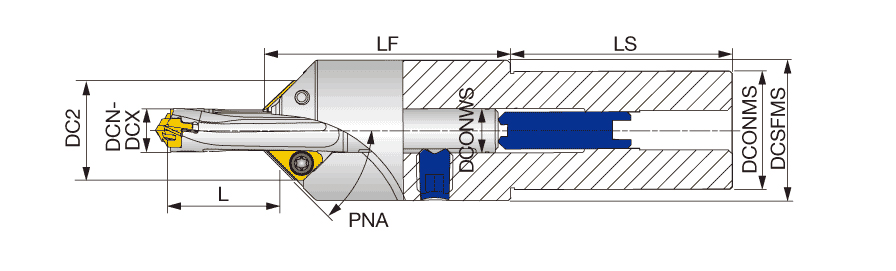

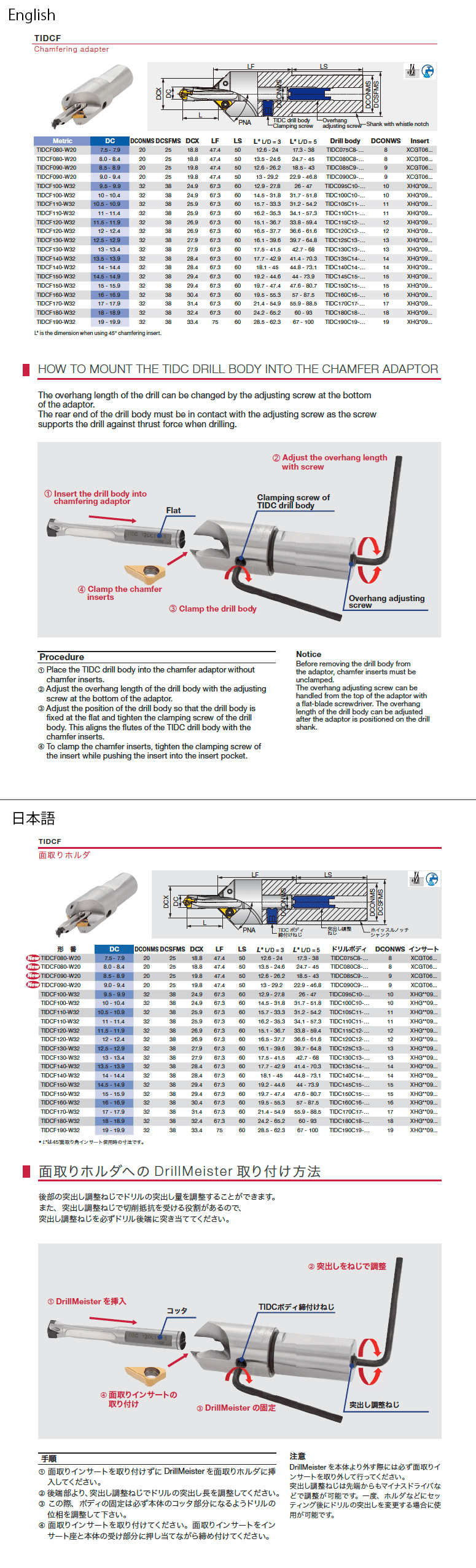

L dimension is based on the 45 deg chamfering insert.@Procedure@(1) Place the TIDC drill body into the chamfer adapter without chamfer inserts.@(2) Adjust the overhang length of the drill body with the adjusting screw at the bottom of the adapter.@(3) Adjust the position of the drill body so that the drill body is fixed at the flat and tighten the clamping screw of the drill body. This aligns the flutes of the TIDC drill body with the chamfer inserts.@(4) To clamp the chamfer inserts, tighten the clamping screw of the insert while pushing the insert into the insert pocket.
