TSV02R100A31.0-06W4.0C

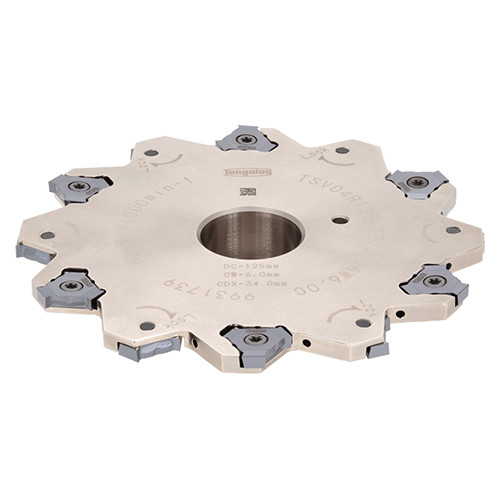

Slot mill head for tangentially mounted inserts, with boss
Produktspezifikationen

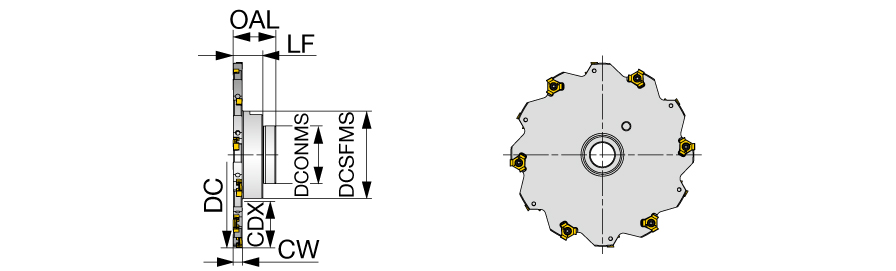

| Schneidendurchmesser (DC) | 100 mm | Maßsystem | Metric |
| Schneidbreite (CW) | 4 mm | Produktart | Solid carbide center cutting endmills 90 |
| Schneidtiefe, max. (CDX) | 25.5 mm | Schaftausführung | Steel |
| Eff. periphere Schneidenzahl (ZEFP) | 6 | Anzahl Schneidkörper (CICT) | 12 |
| Aufnahmedurchmesser, maschinenseitig (DCONMS) | 31 mm | Funktionslänge (LF) | 16 mm |
| Gesamtlänge (OAL) | 23 mm | Bezeichnung Schneidplatte (MIID) | TVKX020202TN-MJ |
| Anwendung | | Slot Milling | | Metrisch/Inch | M |
Produkteigenschaften
| Produktbeschreibung | Slot mill head for tangentially mounted inserts, with boss | Gruppenbezeichnung | TSV-C |
| Bemerkung | For how to assemble the inserts to the cutter body and how to assemble the cutter body to the adapter, click on "More Info". *Note : Dedicated wrench is sold separately. If coolant isn't supplied from the end of the arbor inlay,the center bolt corresponding to the adaptor is essential for coolant supplying. | Hersteller | Tungaloy |
| COO | JAPAN |
Versandinfos
Verpackungsgewicht
0.0000
Name
Disc w/Shank Indexable Slotting Cutters
Gruppenbezeichnung
TSV-C
Hersteller
Tungaloy
Dokumente und Dateien

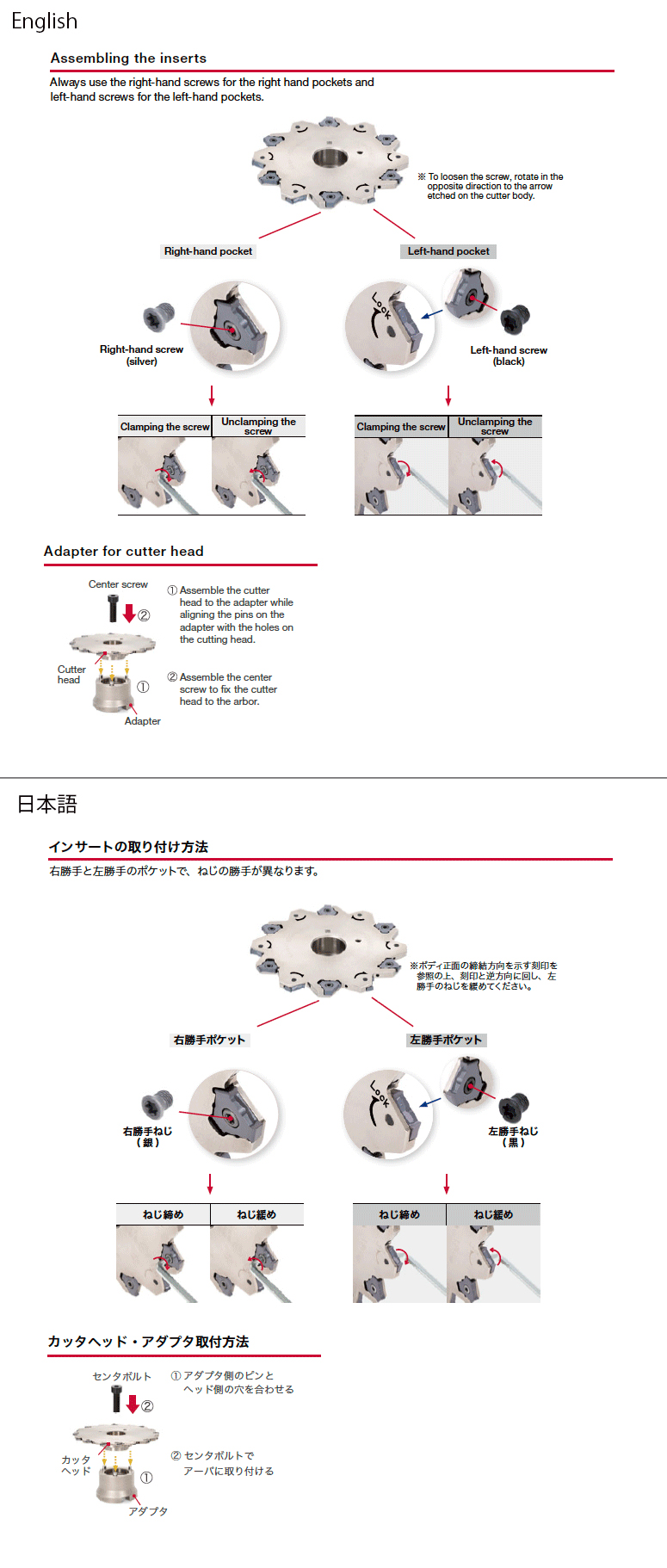

[Assembling the inserts] @Always use the right-hand screws for the right hand pockets and left-hand screws for the left-hand pockets. @To loosen the left-hand screw, rotate in the opposite direction to the arrow etched on the cutter body. @[Adapter for cutter head] @(1) Assemble the cutter head to the adapter while aligning the pins on the adapter with the holes on the cutting head. @(2) Assemble the center screw to fix the cutter head to the arbor.
